Press Transfer Systems
General Specifications
CMT 100
3 Axis Transfer System
Conveyor
2 Belt Conveyor
Destacker
Double Carriage, Single Cartesian Head
Destacker System
Destacker System - Cartesian Robot
Number of Axis
2 (Y and Z)
Bedding Type
Linear ball slide
Number of Cartesian Robot
1
Maximum Working Speed
16 spm
Y Axis Maximum Movement Distance
1600mm (Between loading station center point and conveyor belt center point)
Y Axis Servo Motor
Multiturn absolute
SIEMENS/BECKHOFF/ BOSCH REXROTH
Z Axis Maximum Movement Distance
600mm
Z Axis Servo Motor
Multiturn absolute
SIEMENS/BECKHOFF/ BOSCH REXROTH
Sheet Metal Carrying Type
Vacuum System
BILSING AUTOMATION/ SCHMALZ
Vacuum Pads
6 pieces on each cartesian robot, Ø50mm, adjustable distance
Quick Change connection type
BILSING AUTOMATION/ SCHMALZ
Vacuum Type
Venturi, energy protected
SMC/FESTO
Destacker System - Loading Station
Loading Station
2 stations, each with 2000kg payload capacity
Loading Car Dimensions
1200x1200mm
Max. Carrying the Weight of Single Plate
12Kg
Plate Metal Thickness Capacity
0,4 ~ 1,6mm
Maximum Height For Plate Bundle
500mm (Pallet is not included)
Sheet Specification of Using Plate
Magnetic and non-magnetic
Plate Metal Separating
Air knives and magnetic separator
Automatic Station Change
Yes
Loading Car Z Movement
Yes
Destacker System - Conveyor
Conveyor Belt Type
Timing Belt
Number of Belts
2
X Axis Movement
Programable servo motor
SIEMENS/BECKHOFF/ BOSCH REXROTH
Belt Width Adjustment
Programable servo motor
SIEMENS/BECKHOFF/ BOSCH REXROTH
Double Sheet Control
Included
Sheet Centering at Outlet Belts
Yes, only from the sides and pneumatic
FESTO/SMC
Conveyor Height Adjustment
±100mm adjustable
Conveyor Sliding Motion
2 belts extending telescopically at the same time, with a travel distance of 750 mm
Small Part Lifting
N/A
Blank Lubrication System
N/A
Blank Width Range (W)
400 ~ 1200mm
Blank Length Range (H)
400 ~ 1200mm
Transfer System
General Specification
Number of Unit
1 set (2 bar)
Number of Axis
3
Maximum Working Speed
16spm
Number of Servo Motors
8
Dimension of Transfer Bars
100x100mm
Locking System
Automatic
Transfer Bar Maximum Carrying Capacity
80Kg, with grippers and sheet metals
Grippers
Not included
Air Conditioner
Not included
Lubrication System
Point lubrication for each axis
INA
Auxiliary Bar
Not included
INA
Transfer Bars Counterfronts
Not included
Exit Conveyor
Not included

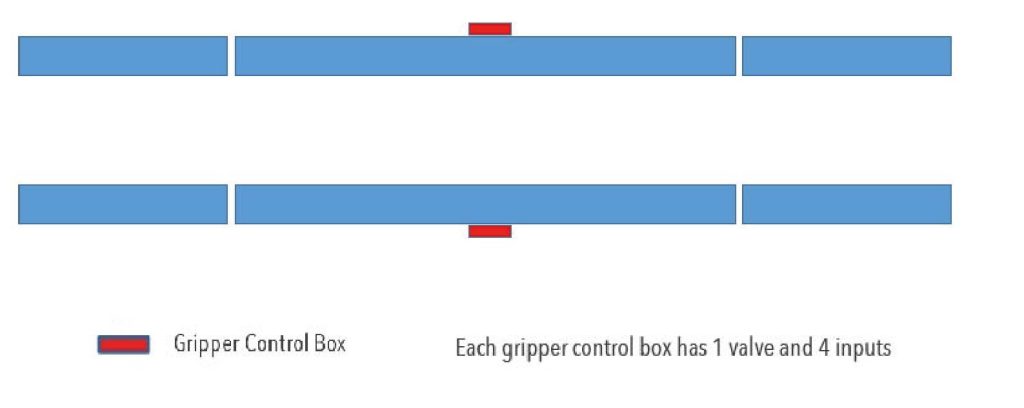

Gripper Control Boxes
X Axis
Axis Movement
1000mm (-500, +500mm)
Servo Motor
2pcs, multiturn absolute,braked Additional 2pcs to move idle side of fixed bar for auto bar pick up
SIEMENS
Gearbox
Rack and pinion
ALPHA WITTENSTEIN
Rack and pinion
Grinded, helical
Linear Rail and Bearings
Linear ball bearings
THK/INA/REXROTH
Y Axis
Axis Movement
Will be decided according to press upright dimensions
Servo Motor
4 pcs, multiturn absolute, braked
SIEMENS
Gearbox
Rack and pinion
ALPHA WITTENSTEIN
Rack and pinion
Grinded, helical
Linear Rail and Bearings
Linear ball bearings
THK/INA/REXROTH
Z Axis
Axis Movement
Will be decided according to press upright dimensions
Servo Motor
4 pcs, multiturn absolute, braked
SIEMENS
Gearbox
Rack and pinion
ALPHA WITTENSTEIN
Rack and pinion
Grinded, helical
Linear Rail and Bearings
Linear ball bearings
THK/INA/REXROTH
Transfer Bars Details
Lock System
Guide group machined from cementation steel and heat treated
Connection Type
Easy and long-lasting connection structure with pinless socket system
Air-Electric Connection Type
Both connections made automatically whan the bars are locked
Dynamic Torque Control
With Dynamic Torque Control, transfer system stops instantaneously when defined limit torque value reached. This allows preventing occupational accidents and damages.
SimpLinx Remote Connection
Our machines are always accessible with the SimpLinx remote connection module. Intervention and diagnosis can be done by connecting to your machine remotely. Processes in the fastest way possible by our technical service team in case of any malfunction. It helps to connect without getting stuck cause of your port or firewall restriction procedures.
Safety Package
Safety Controller
SIEMENS
Fence System
TROAX
Safety Door
TROAX
Locking System
EUCHNER
Light Barrier
SICK
